LARDIS-BOX
For connecting radio devices, announcement systems and for building automation
LARDIS-BOX
The LARDIS-BOX is the heart of the network (LAN).
For connecting up to two analog or digital radios or announcement systems. Up to two additional two-way radios or pagers can also be connected.
Radio connection interface
The LARDIS-BOX RADIO2 has 3 COM ports (two with audio) and a total of 4 USB interfaces. In addition to the slot for square nuts, it offers an additional mounting option in a 19″ subrack (3U) using an additionally available front panel.
The LARDIS-BOX supports all BDBOS-certified TETRA radios as well as many DMR radios.
- Motorola TETRA-MRT/FRT
- Sepura TETRA-MRT/FRT
- Motorola TETRA-HRT in the original car kit
- Motorola TETRA-HRT in the original car kit
- AEG Teledux 9
- AEG/EADS FuG 8b/9
- Bosch/Motorola/Radiodata FuG 8b/9c
- Ascom/Pfitzner FuG 8b/9c
- Hytera MD78X
- Kenwood NEXEDGE NX700/800
- Tait TM9300 (Tier 2 and Tier 3)
- Motorola MOTOTRBO DM3000/4000
- Icom IC-SAT100/M Satellite PTT
- Peitel PTCarPhone 5/6 Vehicle Communication System
- Motorola TETRA-Pager TPG2200
- Airbus TETRA-Pager P8GR
- POCSAG Message receiver

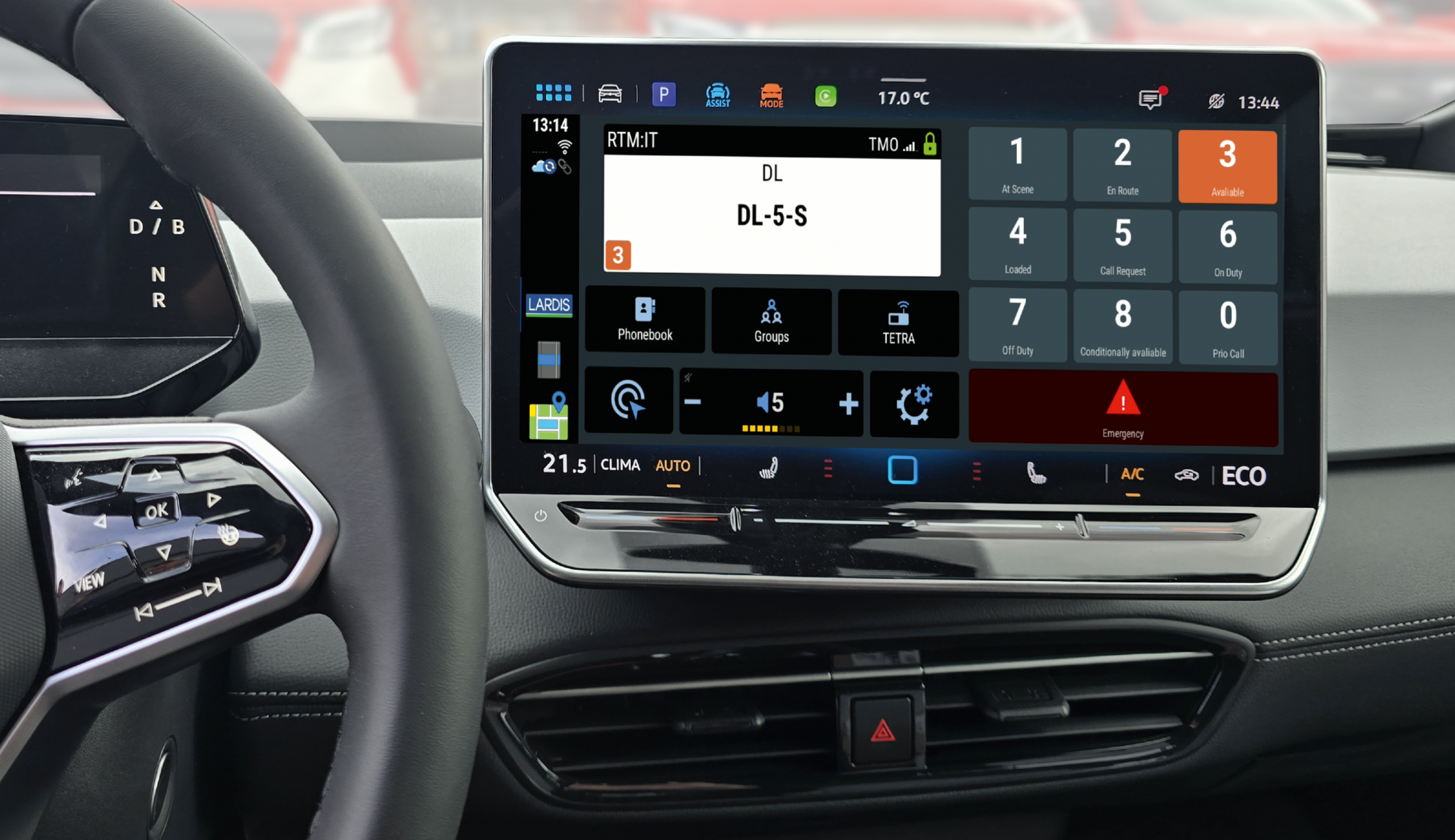

LARDIS-PILOT
Car touch control panel + navigation
LARDIS-PILOT
Control of up to six radios or announcement systems connected via one or more LARDIS boxes. Integrated turn-by-turn navigation, optimized for BOS vehicles. The destination and information can be transmitted and accepted directly from the control center.
The LARDIS-PILOT extends the functionality of your LARDIS system with a simple operating option for the driver's seat. Connected via the LARDIS-BOX, it offers an integrated user interface for controlling up to six radios. The user interface, navigation and status handling are identical to our single radio solution https://lardis-one.de/en/, which ensures intuitive operation.
LARDIS-TOUCH
LARDIS-TOUCH
With our high-quality touch panel PCs, you can conveniently control all components via the LARDIS-DESK software. The displays are ideal for installation in vehicles or stationary control centers.
High-quality control consoles with specially customised Microsoft Windows 10 IoT Enterprise 2021 LTSC operating system for running the LARDIS-DESK software.
Available in various designs and sizes, for recessed installation or as a stand-mounted version.
- 15”
- 12”
- 10”
- 7”
Screen sizes suitable for every application
Maximum connectivity - connectors for all extensions
12V DC Power Adapter
For connection via the
table power supply unit supplied or in the vehicle via a
suitable DC/DC voltage converter.
Network connection
Connection to the local network (LAN)
for communication with the LARDIS components,
as well as for VoIP telephony
Network connection
Connection to the local network (LAN)
for communication with the LARDIS components,
as well as for VoIP telephony
USB-Ports
Connection of accessory components such as
audio devices, foot switch or Busylight.
USB-Ports
Connection of accessory components such as
audio devices, foot switch or Busylight.
USB-Ports
Connection of accessory components such as
audio devices, foot switch or Busylight.
HDMI port
For mirrored display on
an external monitor, e.g.
for demonstration or training purposes
Passive device cooling
The heat dissipation of the devices is
passive via the rear panel of the housing.
The device does not include active ventilation.
The 7’ device has deviating, limited connection options due to its design.
Microsoft and Windows 10 are trademarks of the Microsoft group
LARDIS-PORTABLE
Portable for mobilen Einsatz
The compact LARDIS radio case system: robust, portable and usable anywhere
For remote control of existing LARDIS systems or for setting up complete, location-independent telecommunication workstations.
Perfect for the remote command post!
LARDIS-PDU
Portable Desk Unit, a complete LARDIS workstation in a robust case for remote operation of a LARDIS Desk client via LAN.LARDIS-PRU
Portable Radio Unit, a robust radio case (protection class IP67 when closed) for mounting and connecting 2 Motorola or 2 Sepura TETRA-MRT to a LARDIS system via LAN.
Call stations
Individually or complete with handset.
LARDIS Call station 1
Desktop microphone with
2x loudspeaker,
5 dedicated radio PTTs and
one universal PTT button
LARDIS Call station 2
Handset with PTT button, combined with desktop microphone and
2x loudspeaker,
5 dedicated radio PTTs and
one universal PTT button
LARDIS handset
Handset with PTT button
Further versions and combinations are available via our Specialist retail partners.
Table-top operating units
Independent operation and communication
LARDIS-INTERKOM 2 and LARDIS-OFFICE 2
LARDIS-INTERKOM 2
Free-standing or wall-mounted control unit for call and status operation of up to two radio circuits in the LARDIS network.
Integrated microphone with loudspeaker, 3” touch display, 2 dedicated radio PTTs and a universal PTT button.
LARDIS-OFFICE 2
Free-standing control unit for call and status operation of up to four radio circuits in the LARDIS network. Handset with PTT button, combined with desktop microphone, loudspeaker, 3” touch display, 2 dedicated radio PTTs and a universal PTT button.
High-quality desktop operating devices with specially customised Microsoft Windows 10 IoT Enterprise 2021 LTSC operating system for running the LARDIS-DESK software. The devices each have integrated voice communication and monitoring options: Handset with PTT button, combined with desktop microphone, loudspeaker and a universal PTT button. Available in various designs and sizes as a surface-mounted version.
LARDIS BF07
Desktop operating unit with 7” touch display and 5 additional dedicated radio PTTs.
LARDIS BF10
Desktop operating unit with 10.4” touch display. Optionally also available as a variant for recessed panel installation.
LARDIS BF20
Desktop control unit with 15” touch display.
You can obtain data sheets and further information on our table-top operating units from your Specialist retailers.

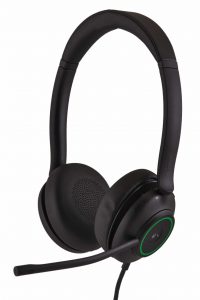

Headsets
Wired or wireless
Headset 3
with jack plug for connection to
LARDIS-TOUCH or PC via the included
high-quality USB audio adapter.
Headset 4 mono
Wireless monoaural headset.
Connection to LARDIS-TOUCH or PC via the included Bluetooth dongle.
Headset 5 stereo
Wireless binaural headset.
Connection to LARDIS-TOUCH or PC via the included Bluetooth dongle.
Footswitches
PTT button for hands-free operation
Footswitch 1
Foot switch as external PTT button for direct connection to the USB port of the LARDIS-TOUCH or PC.
Footswitch 2
Passive footswitch as external PTT button for connection to the PTT Adaptor 2.
Footswitch 3
Foot switch as external PTT button for direct connection to the USB port of the LARDIS-TOUCH or PC.
Lightweight and robust design with microswitch.
PTT Adaptor 2
For connecting any external PTT button (potential-free make contact) to the LARDIS-TOUCH or PC via USB.
Busylights
Status display of radio workstations
LARDIS-DESK supports the connection of a Kuando busylight of type UC Alpha or UC Omega. Simply connect the Busylight to the corresponding LARDIS workstation PC via USB - no configuration is necessary.
Accessories
Ideal additions to our products
Installation frame
Frame for our intercom stations
Stand
Stand for LARDIS-TOUCH or table-top operating units
Passive audio components
For connection to HMIPORT 1, audio playback of radio devices and announcements
HMIPORT
USB multi-audio adapter for connection to LARDIS-TOUCH or LARDIS-BOX (for use together with LARDIS-PILOT) via USB. For connecting passive audio components.
USB feed-through
Concealed installation and dustproof cover
Audio adaptor
USB audio adaptor for connecting a headset with jack plug
Here you can see a selection of accessories. You can obtain the complete list from your Specialist retailers.
Subject to technical errors and modifications.
